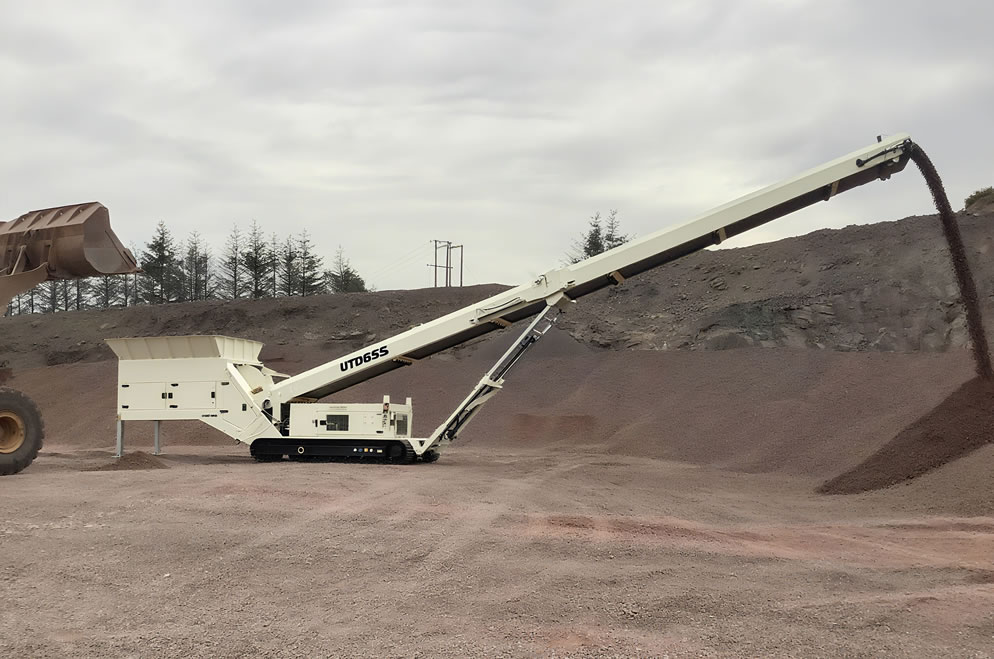

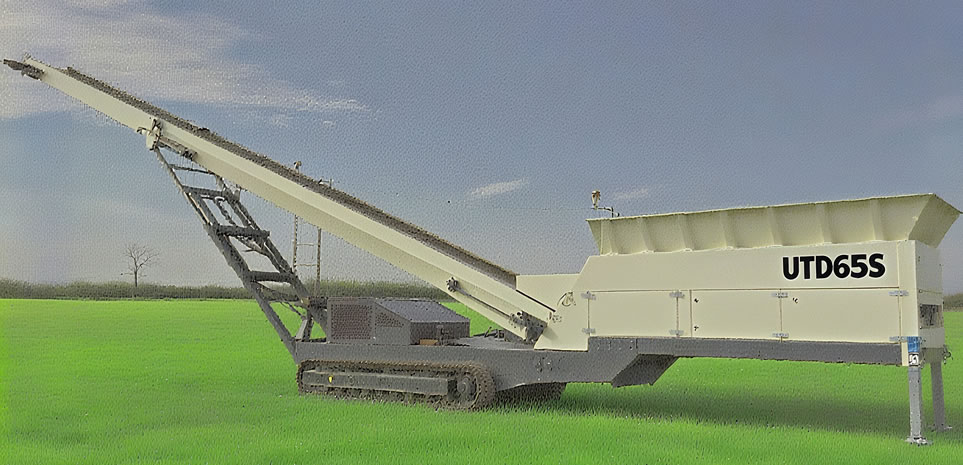

UTD65s Crawler Mobile stacker conveyor with big hopper，capacity 300-500t/g
Belt Width (mm) 1200 ConveyingLength(mm)20000 ConveyingHeight(mm)9800
Driving Mode Hydraulic Motor Hydraulic Motor Capacity (t/h) 150-300 600 Walking Chassis B400*4000 Diesel Engine (83KW)
Feed hopper(mm) 3800*2300 Feeding conveyer B1000*3400 B1200*3500 Transport Dimensions(mm)13500*2750*3120 Working Dimensions(mm) 19500*2750*8500 Equipment Weight (t) 22.5
10ft feeder hopper that transfers material onto a 50ft conveyor.
Designed to allow operators to stockpile/transfer material, it eliminates double handling of materials.
The unit can also be compacted for transport into a 40ft high cube container, reducing transport costs
