UJC425 on Construction Waste — Henan Site Footage

Working footage of the UPSEN UJC425 tracked mobile jaw crusher: a 6–8 t/h tracked mobile jaw crusher on rubber B180x1100mm built for quarry Mining. This page is the dedicated watch page for this video — the full machine specification and enquiry form are on the UJC425 product page.

Machine
UJC425 Tracked Mobile Jaw Crusher
Video length
1 min 4 sec
Published
22 September 2026
Video file
upsen-mini-mobile-concrete-crusher.mp4

About this video

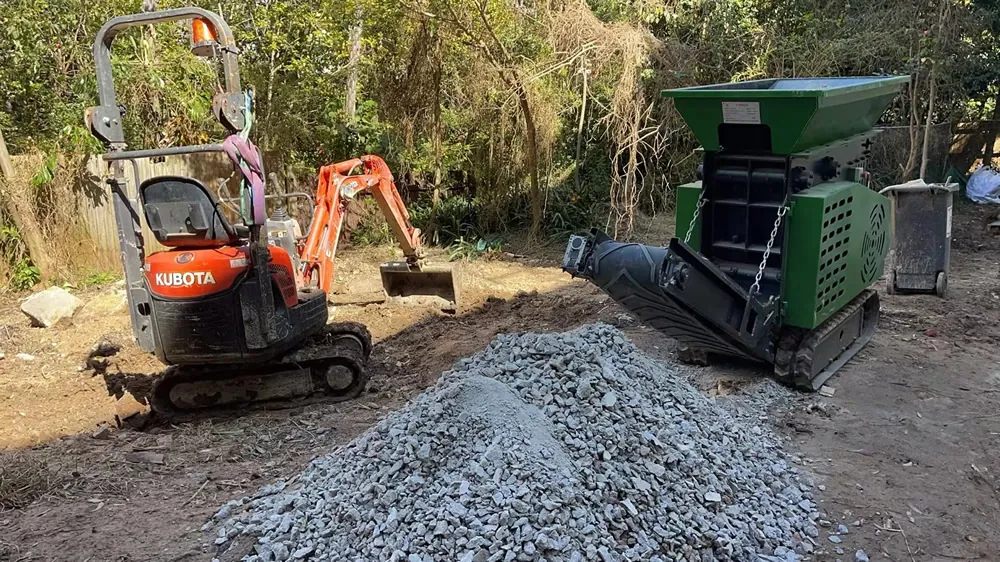

This is the same model as the Australian clip, on the same class of material, at a site in Henan — construction waste from demolition and refurbishment. It is worth watching the two together, because the difference between them is 2 t/h and neither run is unusual.

Here the machine sits at around 6 t/h as measured, inside the 6-8 t/h catalogue rating. The feed at this site carries more fines and mortar than the Australian job, and fines pass through the chamber without contributing much to tonnage while still taking up volume in the jaw. A feed that is already half dust is not a feed that crushes fast.

The UJC425 is a 1,300 kg unit, so it is normally set up beside the work rather than feeding a stockpile: rubble goes in, a reusable fill-grade fraction comes out, and the skips leaving site carry less volume. That is the economics of this size of machine — saving haulage, not hitting a tonnage target.

Six tonnes an hour of demolition waste is a realistic figure to plan a small site around.

For buyers comparing options: this machine appears in 2 other working videos on this site — see the links below. The full specification table and EU conformity documentation are on the UJC425 product page.

Prices are quoted per project rather than published as a fixed figure, because the final price varies significantly with the diesel engine specified (brand, power rating and emission standard), the machine configuration (chassis, screening decks, conveyors, CE or EPA compliance), the drive mode (tracked or wheeled, and how the crusher itself is driven), and exchange-rate movement at the time of order.

Send your throughput, feed material, site conditions and destination port through the enquiry form, and we will reply with a configuration and an itemised quotation.

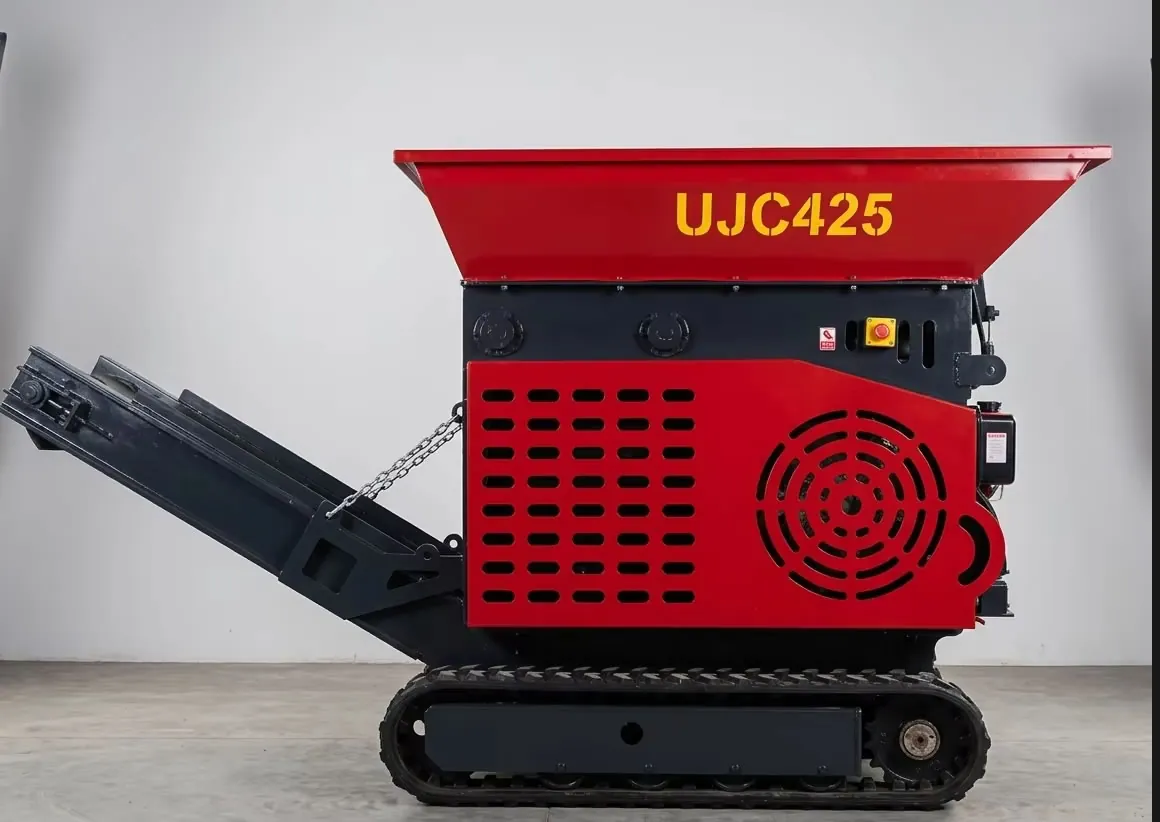

UJC425 key specifications

Hopper Volume
0.3 m³
Jaw Crusher Model
JC425
Feed Port Size
400x250mm
Max. Feeding Size
180x300mm
Jaw Plate
ZgMn 18Cr2
Discharge Range
10-50mm
Capacity
6-8 t/h
Engine
HAIRUN 14HP (Stage 5)
Discharge Conveyor
B300x1500mm
Stacking Height
1000mm
Track Type
Rubber B180x1100mm
Total Weight
1,300 kg
Working Size (LxWxH)
2700x760x1450mm
Transport Size
1800x760x1700mm

Where the UJC425 is used

Typical applications

  • Quarry primary crushing of granite, basalt and limestone
  • Reinforced concrete and demolition debris recycling
  • Road and railway ballast production
  • Contract crushing jobs that move between sites

Raw materials handled

  • Granite, basalt and river stone
  • Reinforced concrete with rebar
  • Demolition rubble and C&D debris
  • Quarry-run rock and ballast

Common questions about the UJC425

What does video 2 of the UJC425 show?

This clip runs 1 min 4 sec. It is working video 2 of 3 published for the UJC425, and shows the machine in its working configuration. The full specification and enquiry form are on the UJC425 product page.

What is the maximum feed size of the UJC425?

Up to 180x300mm.

How much does a UJC425 weigh?

The UJC425 has an operating weight of 1,300 kg.

What materials can the UJC425 handle?

The UJC425 is used with granite, basalt and river stone; reinforced concrete with rebar; demolition rubble and C&D debris; quarry-run rock and ballast. See the UJC425 product page for the full specification.

More videos of this machine

More mobile crusher working videos

Get a price for the UJC425

Tell us your feed material, required output and site conditions — we will reply with a configuration and quotation. The UJC425 is available for sale worldwide, and EU conformity documentation is supplied with every unit.

Email mail@upsen.cn  or call / WhatsApp +8615333827088.
