Tracked Mobile Crusher for Demolition Waste
Crush concrete, brick, block and asphalt where the building comes down. UPSEN tracked jaw and impact crushers process 40-150 t/h of demolition waste into reusable aggregate on site - self-propelled, diesel powered, crushing within 30 minutes of arrival.
Get A QuoteCrush at the workface
Move with the demolition as it progresses. Tracked machines travel across the site without re-permitting, cutting haulage and disposal costs to zero for material you reuse.
One train, every material
Jaw crushers take reinforced concrete and brick; impact crushers refine asphalt and mixed rubble. Add a screener and magnet and you have a complete demolition waste recycling line.
Compliant and quiet
Engines meet EURO Stage 3A / Stage V emission levels - machines you can run on urban demolition sites with emission controls and neighbourhood noise limits.
Demolition Crushers by Material Type
Jaw crushers for concrete and brick - impact crusher for asphalt and secondary crushing
| Feed opening | 800 x 500 mm |
| Max feed size | 425 mm |
| Output range | 30-100 mm |
| Capacity | 50-100 t/h |
| Engine | Cummins 100 kW |
| Operating weight | 22,000 kg |

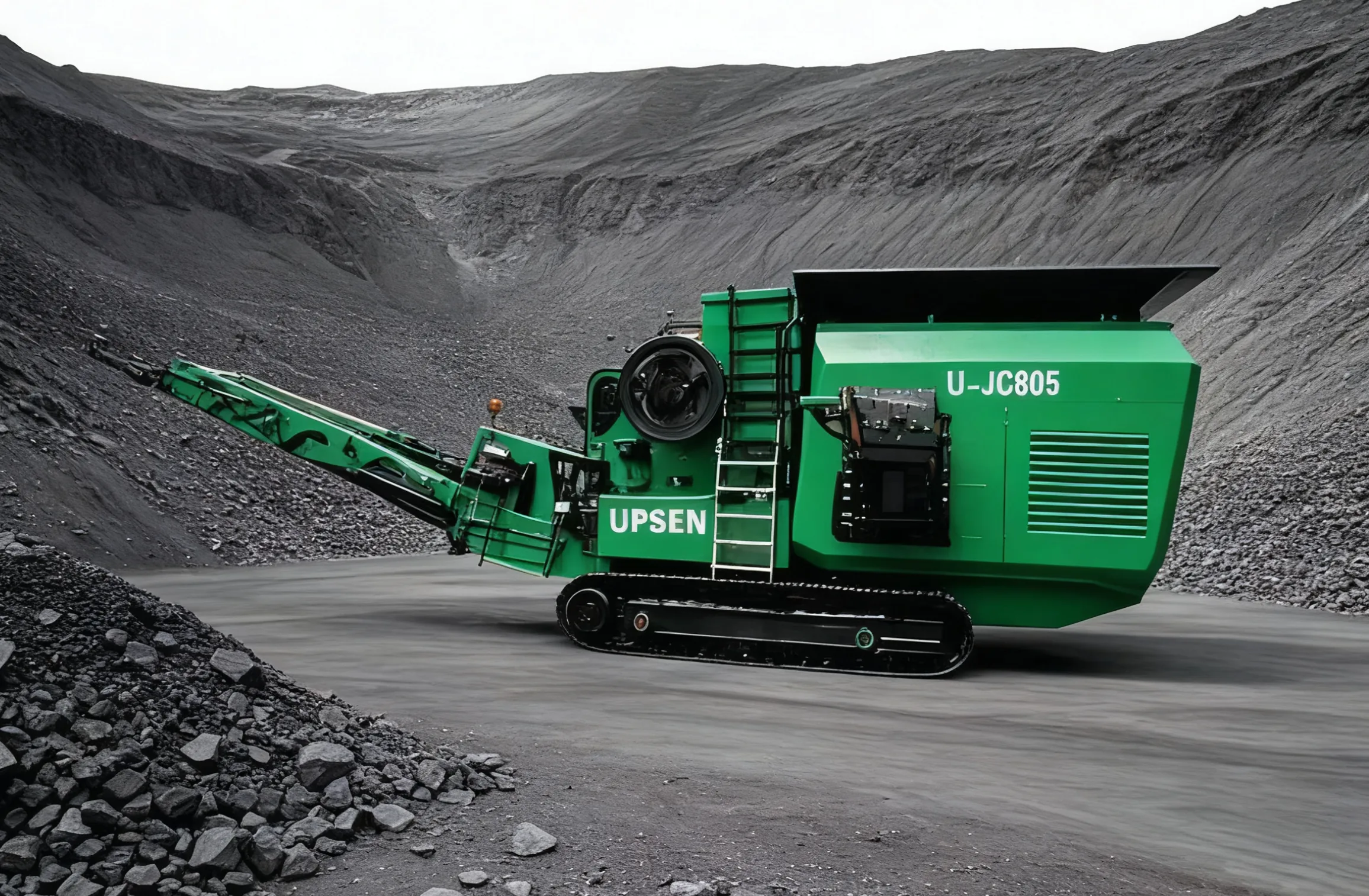

The demolition workhorse for mid-size sites and recycling yards.
View UJC805 Details
| Feed opening | 680 x 430 mm |
| Max feed size | 350 mm |
| Output range | 20-80 mm |
| Capacity | 40-50 t/h |
| Engine | YANMAR 61 kW |
| Operating weight | 14,500 kg |

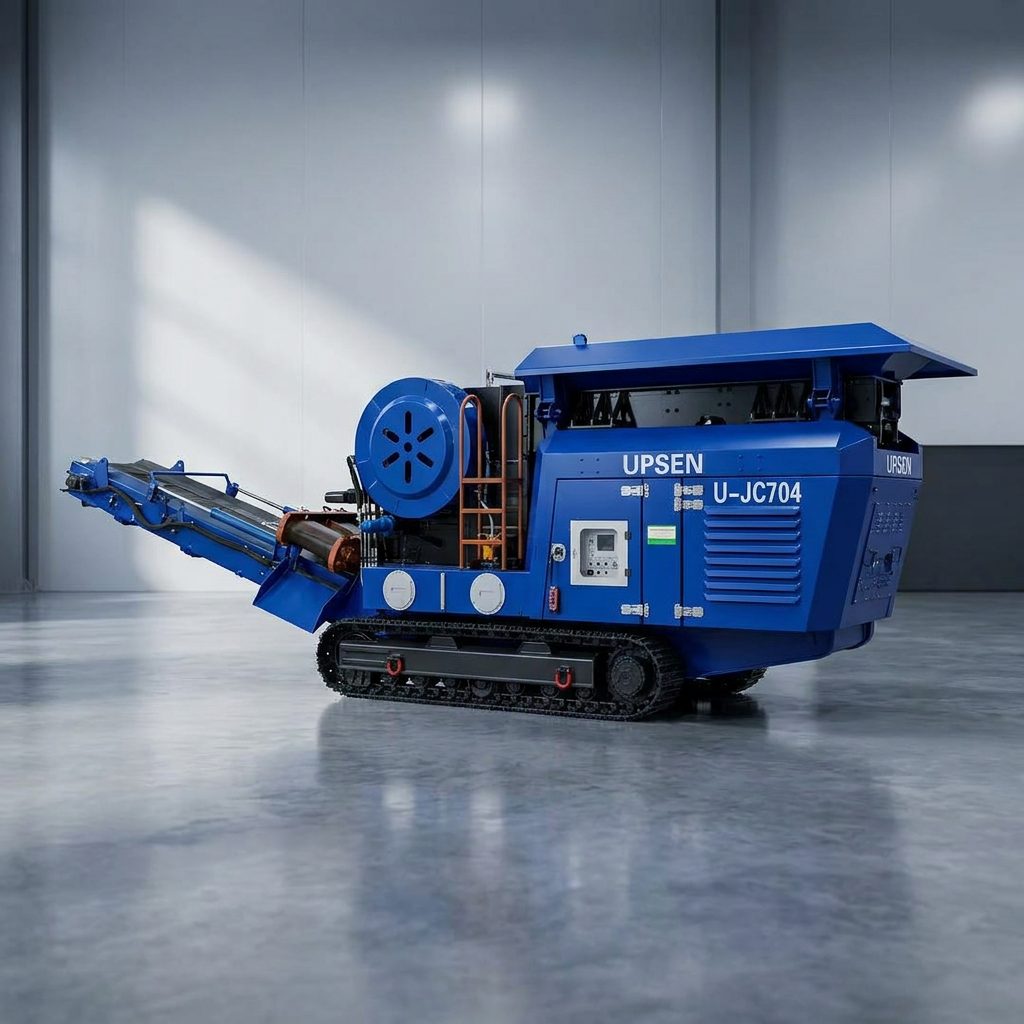

Compact tracked jaw crusher for narrow urban sites and basements.
View UJC704 Details
| Feed opening | 860 x 720 mm |
| Max feed size | 500 mm |
| Capacity | 30-150 t/h |
| Engine | Cummins 154 kW |
| Operating weight | 24,000 kg |
Tracked impact crusher for asphalt pavement and secondary reduction of mixed rubble.
View UIC80 DetailsNeed a bigger primary? See the full mobile crusher range including the UJC96E (60-150 t/h) for large demolition projects.
Which Crusher for Which Demolition Material
| Material | Recommended machine | Typical output |
|---|---|---|
| Reinforced concrete, slabs, columns | Tracked jaw crusher (UJC704 / UJC805 / UJC96E) | 20-120 mm aggregate; rebar removed by magnet |
| Brick and block masonry | Tracked jaw crusher | Recycled aggregate for fill and base |
| Asphalt pavement and millings | Tracked impact crusher (UIC80) | Recycled asphalt product (RAP) |
| Mixed C&D rubble | Jaw crusher + magnet + screener | Graded base and sub-base material |
| Soil, wood, gypsum, oversize steel | Separate before crushing (not crusher feed) | - |
Typical Demolition Waste Recycling Flow
- 1Sort and scalpSeparate rebar bundles, wood and oversize steel at the workface; the vibrating grizzly feeder scalps soil and fines before crushing.
- 2Primary jaw crushingConcrete and brick reduce to 20-120 mm in one pass through the tracked jaw crusher.
- 3Magnetic separationOverband magnet pulls steel from the crushed stream - clean aggregate, saleable scrap steel.
- 4Secondary impact crushingRun asphalt or oversize through the impact crusher when a finer or more cubical product is needed.
- 5Screen into productsGrade with a mobile screener into base, sub-base and fill fractions ready for the next job or sale.
Tracked Mobile Crusher for Demolition Waste - FAQ
What demolition waste can a tracked mobile crusher process?+
Concrete, brick, block and masonry rubble go through jaw crushers; asphalt and secondary reduction suit the UIC80 impact crusher. Separate soil and oversized steel before feeding.
Do I need separate machines for concrete and asphalt?+
Most contractors run a jaw crusher for concrete and brick, then an impact crusher for asphalt and finer work. UPSEN builds both tracked types so you can match the train to your material mix.
How is rebar handled in demolition crushing?+
Mn13Cr2 jaw plates absorb rebar impact, and an overband magnet pulls steel out of the crushed stream before the conveyor - clean aggregate plus saleable scrap.
What output sizes can a demolition crusher produce?+
Adjustable closed-side settings give 20-80 mm (UJC704) up to 40-120 mm (UJC96E); impact crushers go finer. Screen the output for graded base, fill or aggregate products.
How fast can it start working on site?+
Self-propelled on tracks with its own diesel engine, a UPSEN crusher walks off the trailer and crushes within 15-30 minutes - no crane, no power hookup.
What emission standards do the crushers meet?+
Engines are offered to EURO Stage 3A and Stage V levels (YANMAR and Cummins), suitable for urban demolition sites with emission controls.
Planning a demolition or recycling project?
Tell us your material mix and daily tonnage - we will recommend the right crusher-screener package with pricing and delivery.
