UMS750 Second Multi-Material Test — 20 to 150 t/h

Working footage of the UPSEN UMS750 heavy duty tracked mobile shredder: a heavy duty tracked mobile shredder on b500x4200mm built for metal Wood Recycling. This page is the dedicated watch page for this video — the full machine specification and enquiry form are on the UMS750 product page.

Machine

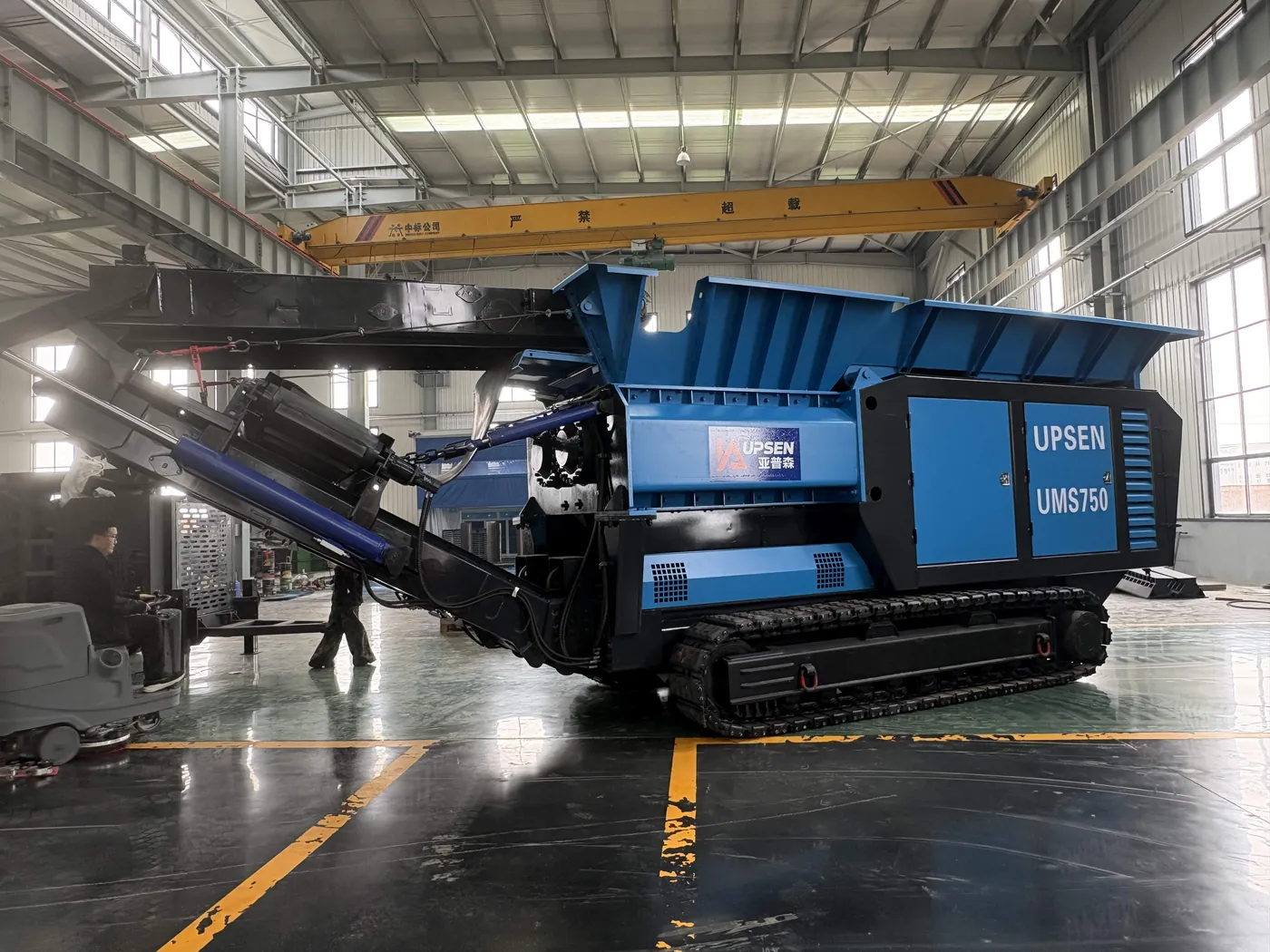

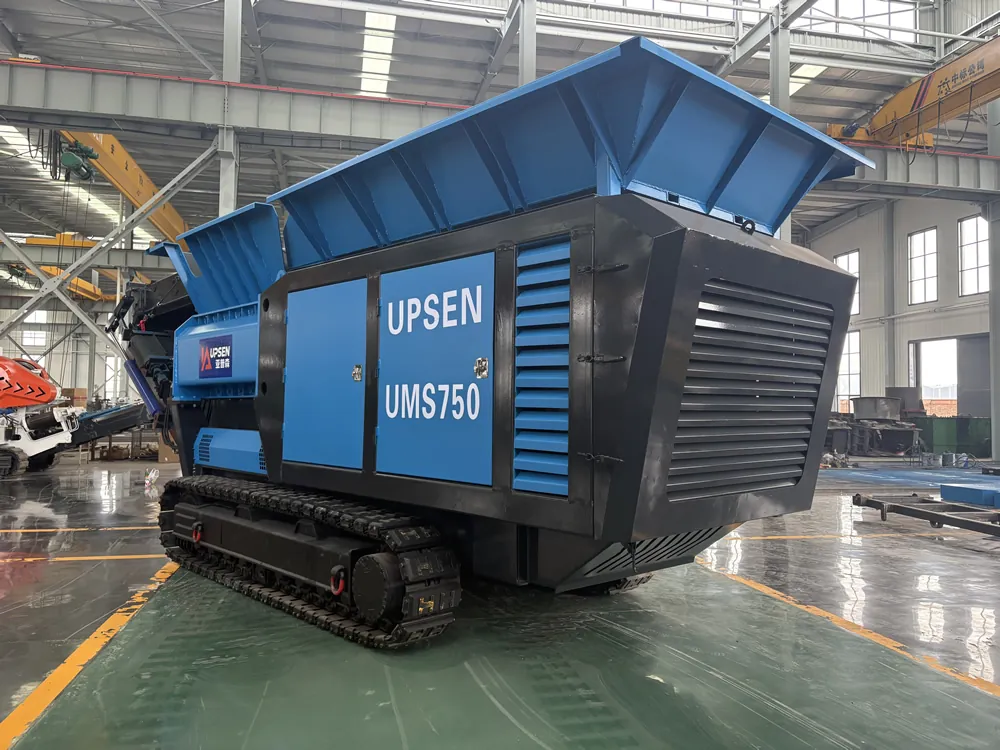

UMS750 Heavy Duty Tracked Mobile Shredder
Video length
41 sec
Published
22 September 2026
Video file
ums750-mobile-shredder-promo.mp4

About this video

A second factory test run of the UMS750, again across several materials in sequence, with throughput measured from 20 t/h to 150 t/h. Our first multi-material clip on this model recorded 15 to 150; the difference at the bottom end is what was in the chamber, not what machine was running.

The top of the band is the number worth understanding. Reaching 150 t/h on a 28,000 kg shredder means dense, brittle feed entering a 5100×2300 mm opening fast enough to keep the rotor loaded — that is, demolition rubble or concrete, fed continuously, with no grate fitted to hold material back. It is the condition the 80-150 t/h catalogue rating is quoted against.

Twenty tonnes an hour is the other end, and it comes from the opposite conditions: bulky or fibrous material, or a grate fitted to force a finer product. Both are legitimate operating points for the same machine.

Two test runs on one model, both published, because a shredder's output is a function of the feed and the setting rather than a fixed property of the machine.

For buyers comparing options: this machine appears in 3 other working videos on this site — see the links below. The full specification table and EU conformity documentation are on the UMS750 product page.

Prices are quoted per project rather than published as a fixed figure, because the final price varies significantly with the diesel engine specified (brand, power rating and emission standard), the machine configuration (chassis, screening decks, conveyors, CE or EPA compliance), the drive mode (tracked or wheeled, and how the crusher itself is driven), and exchange-rate movement at the time of order.

Send your throughput, feed material, site conditions and destination port through the enquiry form, and we will reply with a configuration and an itemised quotation.

UMS750 key specifications

Feed Inlet
5100x2300mm (Hydraulic lifting)
Hopper Capacity
7 m³
Knife Disc Diameter
730mm
Spindle Length
2000mm
Spindle Speed
0-42 r/min
Reducer Torque
240,000 N/M
Cutter Material
HARDOX 500 (NM500)
Hydraulic System
Linde pump/motor, SUN valve
Engine
CUMMINS 8.9L-C360/264KW
Main Conveyor
B1200x10500mm
Discharge Height
3800mm
Iron Remover (opt.)
B800x2200
Track Type
B500x4200mm
Capacity (C&D)
80-150 t/h
Capacity (Wood)
40-60 t/h
Capacity (Scrap Metal)
15-25 t/h
Total Weight
28,000 kg
Working Size (LxWxH)
12850x2650x3850mm
Transport Size
9500x2650x3200mm

Where the UMS750 is used

Typical applications

  • Construction and demolition waste (C&D)
  • Municipal solid waste and bulky waste
  • Wood waste, pallets and green waste
  • Scrap metal and light steel

Raw materials handled

  • C&D waste and mixed demolition debris
  • Wood, pallets and biomass
  • MSW (municipal solid waste)
  • Scrap metal and end-of-life vehicles

Common questions about the UMS750

What does video 3 of the UMS750 show?

This clip runs 41 sec. It is working video 3 of 4 published for the UMS750, and shows the machine in its working configuration. The full specification and enquiry form are on the UMS750 product page.

Does the UMS750 come with EU conformity documentation?

The UMS750 is supplied with EU conformity documentation; the delivery route is confirmed with your order.

How much does a UMS750 weigh?

The UMS750 has an operating weight of 28,000 kg.

What materials can the UMS750 handle?

The UMS750 is used with c&D waste and mixed demolition debris; wood, pallets and biomass; mSW (municipal solid waste); scrap metal and end-of-life vehicles. See the UMS750 product page for the full specification.

More videos of this machine

More mobile shredder working videos

Get a price for the UMS750

Tell us your feed material, required output and site conditions — we will reply with a configuration and quotation. The UMS750 is available for sale worldwide, and EU conformity documentation is supplied with every unit.
